G1 PRO MINI-ITX CASE
G1 PRO MINI-ITX CASE - Image 2
G1 PRO MINI-ITX CASE - Image 3
G1 PRO MINI-ITX CASE - Image 4
G1 PRO MINI-ITX CASE - Image 5
G1 PRO MINI-ITX CASE - Image 6
G1 PRO MINI-ITX CASE - Image 7

G1 PRO MINI-ITX CASE

$129.00

PCIe riser (Optional)

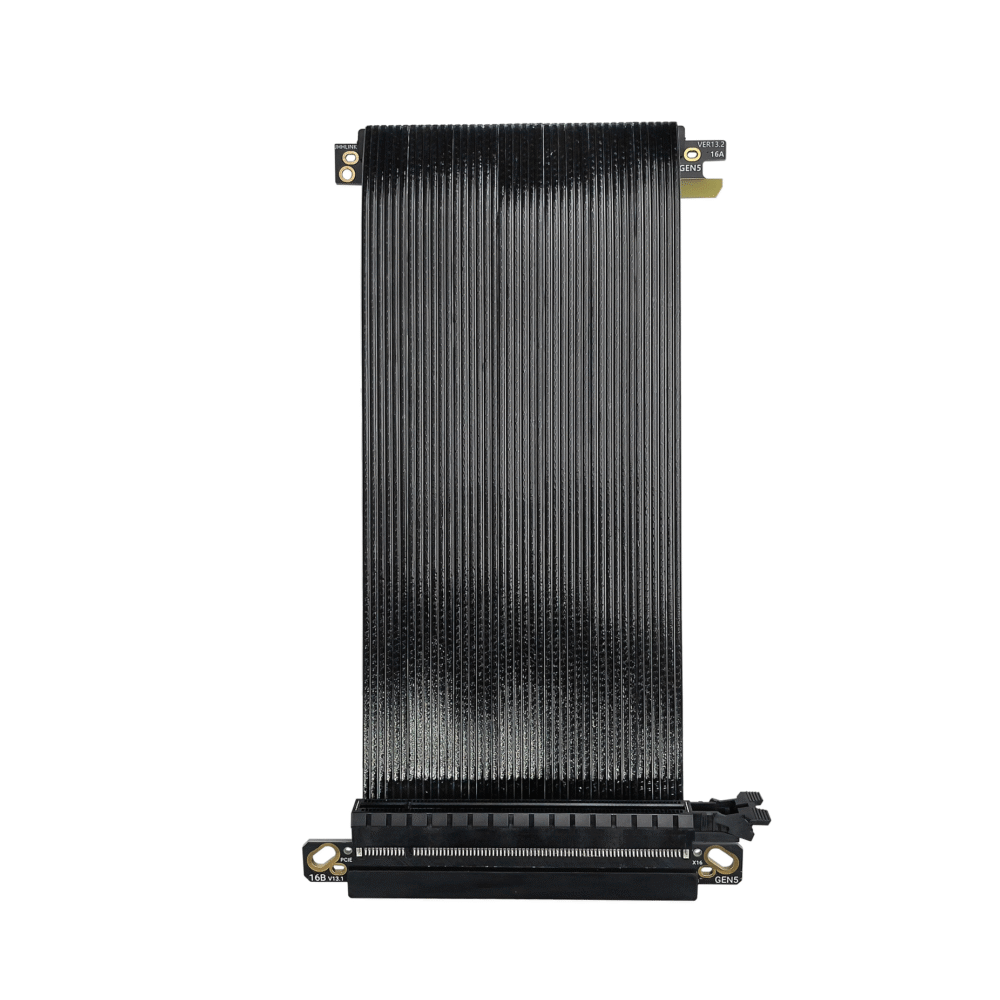

GEEEK PCI-E 3.0 x16 Riser Cable 180mm

Sold Out

GEEEK PCI-E 3.0 x16 Riser Cable 180mm (+$10.00)
GEEEK PCI-E 4.0 x16 Riser Cable 180mm

Sold Out

GEEEK PCI-E 4.0 x16 Riser Cable 180mm (+$20.00)
Placeholder
ADT-Link PCI-E 4.0 x16 Riser Cable 180mm (M33JK-TU) (+$20.00)

Add-on Accessories (Optional)

Placeholder

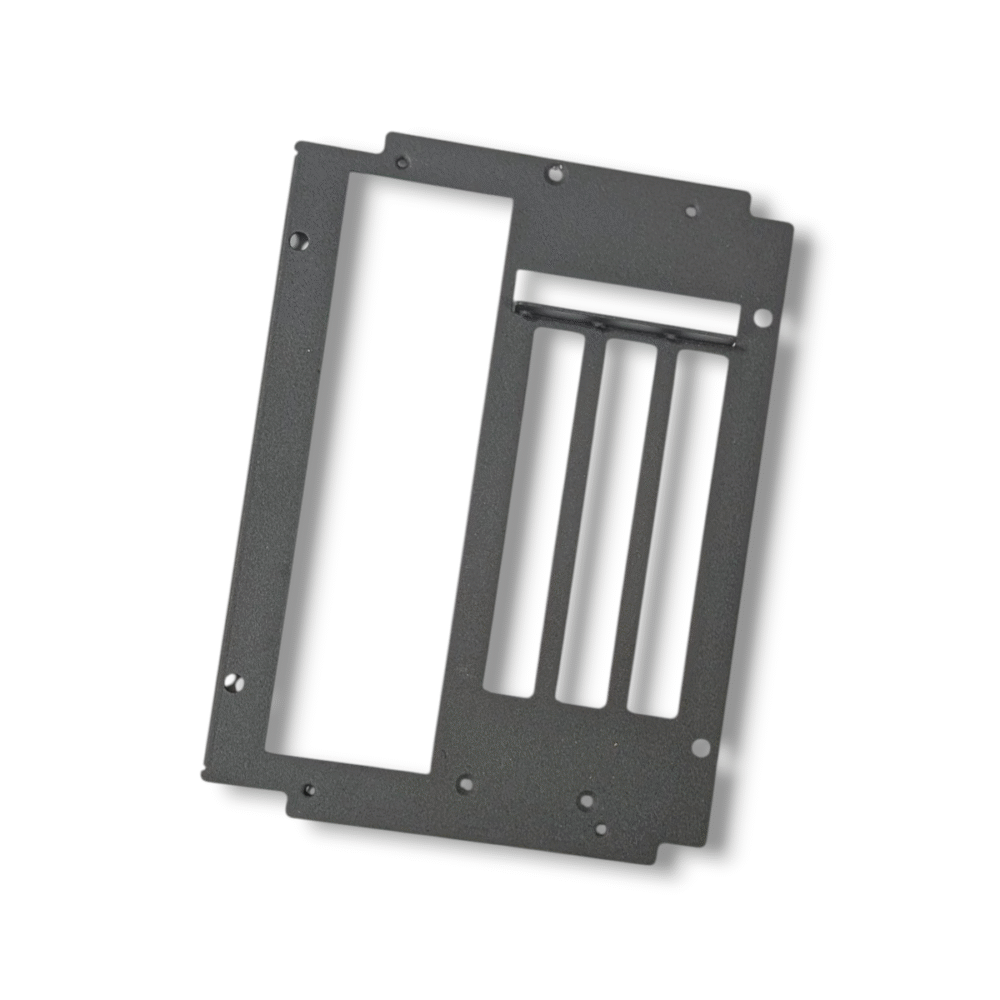

G1 PRO 3-Slot Rear Panel $9.90
Order total:

Specifications

Model G1 Pro
Colors Black
Silver
Materials Aluminum, Steel (SPCC)
Dimensions (LxWxH) 345 x 150 x 240 mm
13.58 x 5.91 x 9.45 in
*Excluding protrusions and foot pads
Front I/O Ports USB3.2 Gen2 10Gbps Type E to Type-C
Volume 12.4 L
Weight 2.7 kg

Compatibility

CPU Cooler Maximum Height : 58mm or 68mm

*When the CPU height is 58mm, the GPU thickness is 65mm
*When the CPU height is 68mm, the GPU thickness is 55mm
Graphics Card Water Cooling Mode (Default):
Maximum Length : 320mm
Maximum Height : 138mm
Maximum Width : 55mm, 2.75 Slots or 65mm 3.25 Slots

Air Cooling Mode:
Maximum Length : 330mm
Maximum Height : 150mm
Maximum Width : 55mm, 2.75 Slots or 65mm 3.25 Slots

*If your graphics card is thicker than 65mm 3.25 slots or an actual 3-slot design, you may purchase an optional 3-slot rear panel.
Motherboard Mini-ITX (17x17cm)
Drives Water Cooling Mode (Default):
2.5″ SSD/HDD x2

Air Cooling Mode:
2.5″ SSD/HDD x1 or
3.5″ HDD x1
Fans Water Cooling Mode (Default):
Top: 120x25mm Fan x2 or 140x25mm Fan x2

Air Cooling Mode:
Top: 120mm Fan x2 or 140mm Fan x2
Bottom: 120mm Fan x2 or 140mm Fan x2
AIO 1x 120mm or 1x 240mm
Radiator thickness: 27mm, Fan thickness: 25mm, Total: 52mm
Power Supply Water Cooling Mode (Default):
SFX

Air Cooling Mode:
SFX, SFX-L

Package Contents

  • 1 x G1 Pro Case (with 2 x Aluminum Ventilated Side Panels)
  • 1 x USB3.2 Gen2 10Gbps Type E to Type-C Front Panel Cable
  • 1 x Power Extension Cable
  • 4 x Foot pad
  • 8 x #6-32 Radiator Screws
  • 1 x Screws

FAQs

Do I need to purchase the G1 PRO 3-Slot Rear Panel?

You may need it if your graphics card is over 65mm thick (3.25 slots), or if it’s a true 3-slot card (like the Nvidia RTX 4080 FE, which is 61mm thick but physically occupies 3 slots).

⚠️ Please note: After switching to the G1 PRO 3-Slot Rear Panel, the maximum supported CPU cooler height is 52mm.
