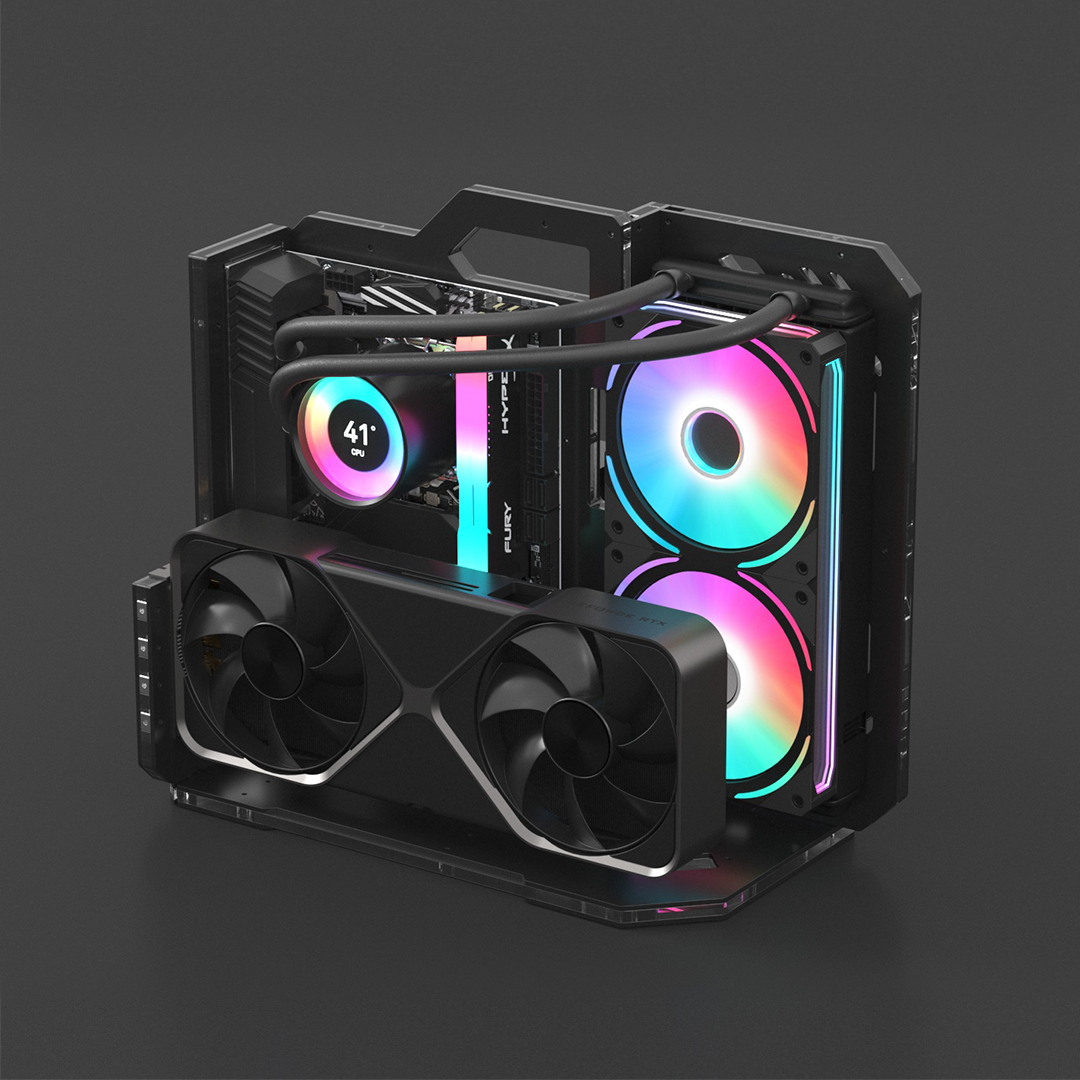

EXO 1S Mini-ITX Open Air Case

EXO 1S Mini-ITX Open Air Case

Original price was: $64.90.Current price is: $59.90.

PCI-E Extension Cable (Optional)

ADT PCI-E 4.0 x16 Extension Cable 150mm (M33SH-BK)
ADT PCI-E 4.0 x16 Extension Cable 150mm (M33SH-BK) (+$45.00 $35.00)
Order total:
SKU: N/A

Specifications

Model EXO 1S
Colors Black
White
Materials Acrylic
Dimensions (LxWxH) 350 x 185 x 310mm
Front I/O Ports N/A
Volume N/A
Weight  1.6 kg

Compatibility

Horizontal GPU Mode
CPU Cooler No limitation
Graphics Card Maximum Length : No limitation
Maximum Height : No limitation
Maximum Width : 80mm, 4 Slots

*Due to structural integrity concerns, the uppermost left connector on the GPU may be unusable.
*Graphics cards longer than 335mm may obstruct the power switch.
Motherboard Mini-ITX (17x17cm)
Drives 2.5″ & 3.5″ SSD/HDD
Max total thickness: 45mm
Fans 2x 120mm
Note: Standalone fan installation requires screws (not included)
AIO 120mm, 240mm
Power Supply ATX, SFX-L, SFX
Vertical GPU Mode
CPU Cooler Position 1 : 50mm
Position 2 : 70mm

*In Vertical GPU mode, only Low-Profile air coolers or AIO liquid coolers are supported.
*Tower cooler compatibility is dependent on cooler dimensions, motherboard layout, and graphics card height.
Graphics Card Maximum Length :
Maximum Height : No limitation *(Condition: When CPU cooler height is < 70mm)
Maximum Width : No limitation

*Due to structural integrity concerns, the uppermost left connector on the GPU may be unusable.
*Graphics cards longer than mm may obstruct the power switch.
Motherboard Micro-ATX, Mini-ITX
Drives 2.5″ SSD / 3.5″ HDD
Max total thickness: 45mm
Fans 2x 120mm
Note: Standalone fan installation requires screws (not included)
AIO 120mm, 240mm
Power Supply ATX, SFX-L, SFX

Package Contents

  • 1 x EXO 1S Open Case (assembly required)
  • 1 x PCI-E Extension Cable (Optional)
  • 1 x Screwdriver
  • 1 x Set of Screws
